Power Battery Pack FPC-CCS

As a professional manufacturer, Honflex Electronics' Power Battery Pack FPC-CCS, as the core signal acquisition and management system for new energy vehicle batteries, integrates key components such as flexible circuit boards, plastic structural parts, copper-aluminum busbars, temperature sensors, and connectors into modular units. As the "perception nerve" of the battery management system, this system directly connects each independent battery unit to accurately and real-time collect voltage and temperature signals, thus becoming a key component for achieving intelligent battery monitoring, safety protection, and performance optimization.

Characteristics

As a professional manufacturer, Honflex Electronics' Power Battery Pack FPC-CCS, as the core signal acquisition and management system for new energy vehicle batteries, integrates key components such as flexible circuit boards, plastic structural parts, copper-aluminum busbars, temperature sensors, and connectors into modular units. As the "perception nerve" of the battery management system, this system directly connects each independent battery unit to accurately and real-time collect voltage and temperature signals, thus becoming a key component for achieving intelligent battery monitoring, safety protection, and performance optimization.

Structure

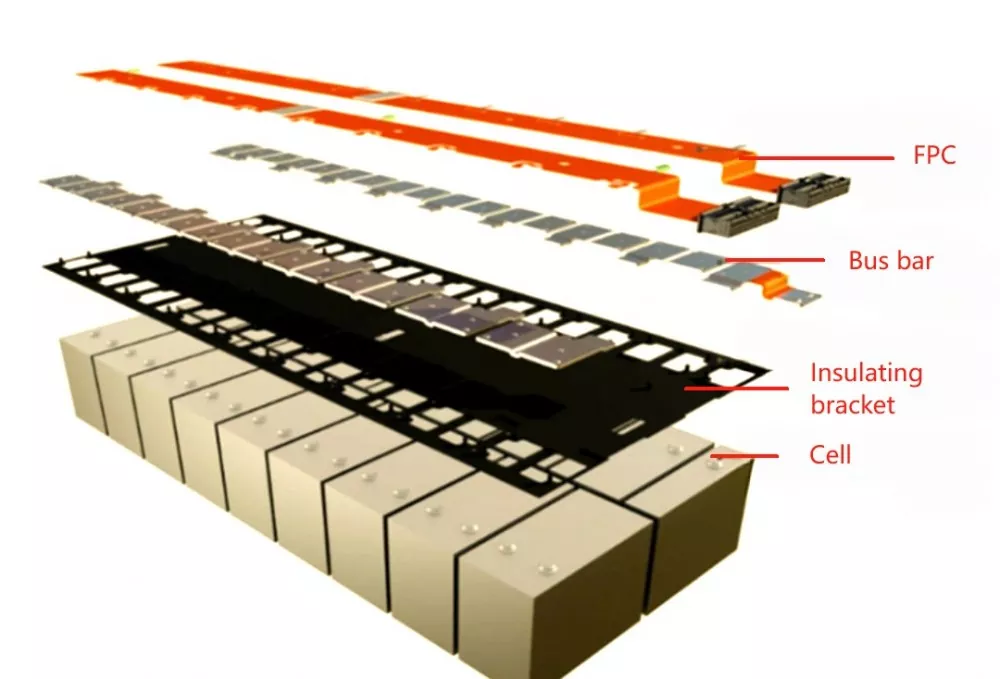

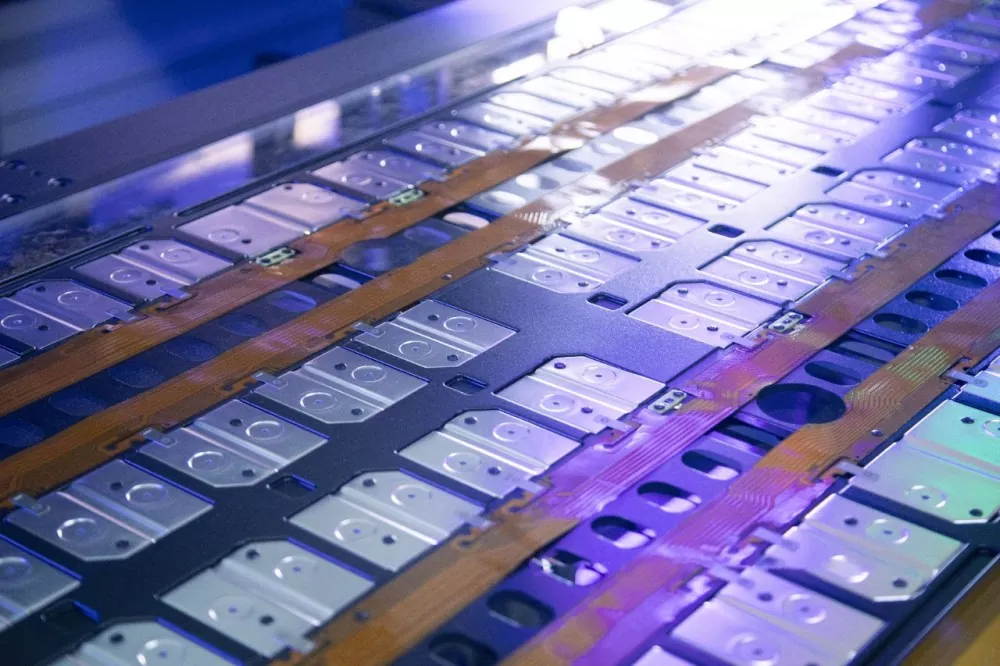

The structure of this Power Battery Pack FPC-CCS consists of two parts: the flexible circuit board (FPC) and the copper bus (CCS). The FPC part uses a polyimide substrate, which is thin and has good flexibility, enabling it to adapt to the narrow spaces and curved shapes within the battery pack. The CCS part is made of high-purity copper, coated with nickel or tin to prevent oxidation, and the two are firmly connected by laser welding to ensure the stability and durability of the electrical connection.

Product advantages

This Power Battery Pack FPC-CCS can provide stable and highly accurate battery status monitoring, serving as the foundation for thermal runaway warning and battery protection. The integrated design reduces connection points, enhances shock resistance and durability. The product has obvious advantages in the similar market, including higher integration, lighter weight, stronger durability and lower cost. Through automated production and strict quality control, we ensure product consistency and reliability to help customers improve their overall competitiveness.

Application scenario

This PowerBatteryPack FPC - CCS is a standard core component of the power battery pack for new energy vehicles, and is widely used in the battery systems of mainstream electric passenger cars, commercial vehicles and special vehicles.

Energy storage battery system: Applied in large-scale energy storage stations and household energy storage cabinets, achieving intelligent management of the battery pack.

Light-duty electric vehicles: Such as electric motorcycles and low-speed electric vehicles.

Other high-end lithium-ion battery application fields: Including robots, electric ships, etc.

Our advantages

We are committed to providing leading FPC-CCS integrated solutions in the global new energy vehicle and energy storage fields. In addition to our focus on high reliability FPC design and manufacturing, we also have strong CCS system integration, automated production and forward-looking research and development capabilities. We closely monitor the industry transitions from FPC to FCC, as well as the shifts from discrete components to COF chip integration, and offer corresponding solutions.

FAQ

Q1: What is Power Battery Pack FPC-CCS?

A: It’s an integrated solution combining flexible printed circuits (FPC) and copper busbar system (CCS) for new energy battery packs, improving energy density, safety, and monitoring accuracy.

Q2: Who should purchase Honflex FPC-CCS?

A: Battery manufacturers, EV producers, and energy storage system suppliers seeking high-quality, reliable FPC-CCS solutions can contact Honflex for quotes.

Q3: What are the advantages of FPC-CCS?

A: Honflex FPC-CCS replaces traditional wiring harnesses, enhancing production efficiency, modularity, space utilization, and overall battery pack performance.

Q4: Is Honflex a trusted supplier?

A: Yes, Honflex Electronics is a leading China manufacturer with years of experience in flexible circuits and battery pack solutions, providing reliable products worldwide.

Q5: Can FPC-CCS support different battery types?

A: Yes, the modular design adapts to lithium-ion, solid-state, and other new energy battery systems, making it suitable for various EV and energy storage applications.

Q6: How does FPC-CCS improve safety?

A: By optimizing copper busbar connections and signal monitoring, Honflex FPC-CCS reduces short-circuit risks and ensures stable battery operation.

Q7: How can I order or request a quote?

A: Buyers can contact Honflex Electronics directly to request quotations, technical support, and customized FPC-CCS solutions for their battery projects.

Q8: Does Honflex offer customization?

A: Yes, Honflex provides tailored FPC-CCS designs to meet specific battery pack sizes, voltage requirements, and performance needs for clients worldwide.
