In China, Honflex Electronics is the optical component of the Mobile Phone Screen Backlight Module that provides uniform and high-brightness light sources for liquid crystal display (LCD) panels. Since the liquid crystal itself does not emit light, the display is completely dependent on the illumination of the backlight module. Through complex optical design, point or linear LED light sources are converted into uniform surface light. Welcome to send inquiries.

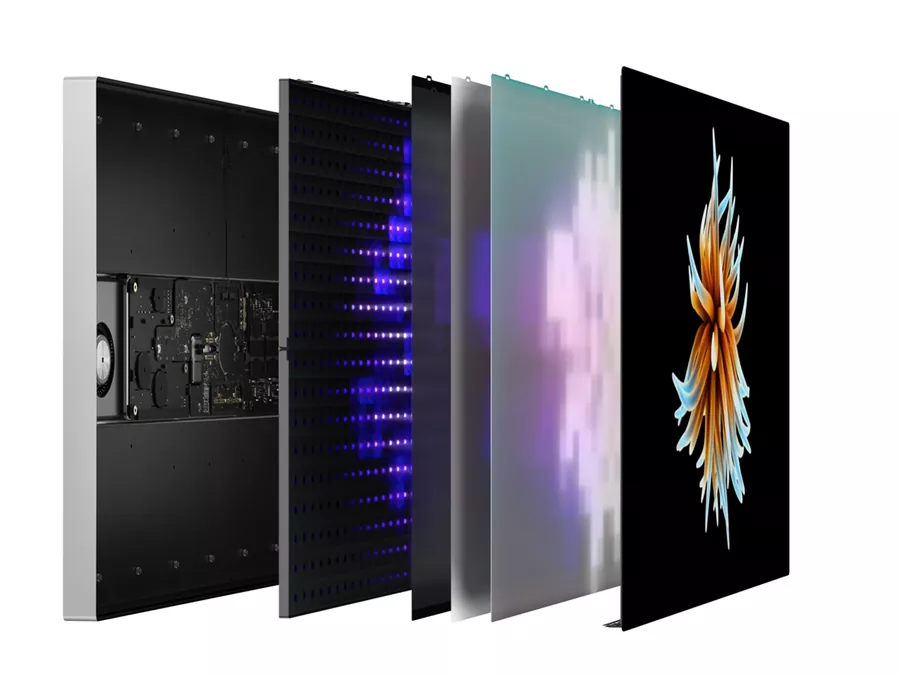

As the core component, the optical system is composed of an optical film group, a light guide plate (LGP), a reflector, a light source (LED strip), and structural components. The light guide plate (LGP) is made of high-transmittance materials such as PMMA/ acrylic. Through precisely designed microstructure points or microprism arrays on the surface or inside, it guides and scatters the light entering from the side, making it uniformly emitted from the front surface, thereby transforming a linear light source into a surface light source.
The reflector located at the bottom of the LGP is responsible for reflecting the light that leaks downward back into the system to enhance the efficiency of light utilization. The optical film group at the top usually contains a diffusion plate and a prism plate (brightness enhancement film), which are used to focus the light Angle and increase the brightness of the front.
The edge lighting of the Mobile Phone Screen Backlight Module is designed with LED strips usually located on one side of the LGP to meet the ultra-thin light origin requirements of products such as mobile phones.
By using light enhancement technologies such as microprism reflective films and adopting integrated all-microstructure designed modules, for instance, the new microprism reflective film technology can achieve 1.5 times the axial brightness of traditional systems. Compared with the traditional architecture, the light extraction efficiency is increased by approximately 23.3%, and the central brightness is increased by approximately 20.7%.
2. To ensure highly consistent light intensity across all parts, the advanced LGP pattern design combined with optical films eliminates dark or bright spots, achieving a uniformity of over 85%.
3. Edge lighting design through structural optimization and material innovation is the key to achieving the shape factor of ultra-thin mobile phones.."
4. The Mobile Phone Screen Backlight Module requires lower driving power to achieve the same screen brightness, saving and extending battery life.
5. 5. By using densely arranged micro LEDs to achieve precise local dimming, the micro LED backlight can achieve better contrast, dynamic range, and richer color expression
The ultra-thin, lightweight and low-power characteristics of this product perfectly meet the requirements of Mobile Phone Screen Backlight Module. It is suitable for wearable devices such as smartwatches and fitness bands; tablets and laptops can provide a high-resolution and high-brightness visual experience; automotive displays have the ability to withstand extreme temperatures, have a long lifespan and extremely high reliability, and can adapt to harsh environments.
Honflex Electronics is dedicated to providing a one-stop solution for high-performance and highly reliable mobile phone backlight modules. Leveraging our extensive experience in optical design, microstructure manufacturing, precision mold manufacturing, and intelligent production over the years, we not only meet the general requirements of customers for brightness, uniformity, and ultra-thinness, but also offer customized support for specific designs to serve narrow bezels and special-shaped screens (such as bezel-less screens, punch-hole screens).
If you need to gain a deeper understanding of specific technologies (such as Mini LED backlighting) or specific performance parameters, please send an inquiry. We provide excellent quality, stable supply, and rapid technical responses to customers worldwide. Contact Us
